Description

ASUS ROG MAXIMUS XII EXTREME Motherboard

ASUS ROG MAXIMUS XII EXTREME Motherboard features:

CPU	Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to http://www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z490
Memory	4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133 (O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/ 3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists).
Multi-GPU Support	Supports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots	Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel® Z490 Chipset 1 x PCIe 3.0 x4 *1
Storage	Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel® 10th Gen Processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)2 Intel® Z490 Chipset : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support3 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready
LAN	Intel® I225-V 2.5Gb Ethernet Marvell® AQtion AQC107 10Gb Ethernet ASUS LANGuard
Wireless Data Network	Intel® Wi-Fi 6 AX201 Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface
Bluetooth	Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio	ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220 – Impedance sense for front and rear headphone outputs – High quality120dBSNR stereo playback outputand113dBSNR recording input – ESS™ ES9023 DAC + RC4580 OP AMP – Supports up to 32-Bit/192kHz playback LED-illuminated audio jacks Audio Feature : – SupremeFX Shielding™ Technology – Optical S/PDIF out port(s) at back panel – Premium Japanese audio capacitors – Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. – Supports : Multi-streaming, Front Panel Jack-retasking
USB Ports	Rear USB Port ( Total 12 ) 1 x USB 3.2 Gen 2×2 port(s) 3 x USB 3.2 Gen 2 port(s)(2 + Type-A +1 + USB Type-CTM) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 10 ) 2 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
Software Features	ROG Exclusive Software – Mem Tweakit – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS® Sound Unbound – Overwolf – BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – OLED Display AI Suite 3: – 5-Way Optimization with AI Overclocking TPU EPU Digi+ Power Control Fan Xpert 4 Turbo app – EZ update AI Charger WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey
ASUS Special Features	ROG Extreme OC kit – EZ PLUG – FlexKey button – LN2 Mode – Probelt – ReTry button – Safe boot button – Start button – Slow Mode Extreme Engine Digi+ – 10K Black Metallic Capacitors – Infineon TDA21490 Power Stage – MicroFine Alloy Choke ASUS Q-Design – ASUS Q-Code – ASUS Q-Connector – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink cover – Steel backplate ASUS EZ DIY – BIOS Flashback™ button – Clear CMOS button – Procool II – Pre-mounted I/O shield – SafeSlot AURA Sync – ROG Aura sync backplate – Standard RGB header(s) – Addressable Gen 2 RGB header(s) LiveDash OLED 2″

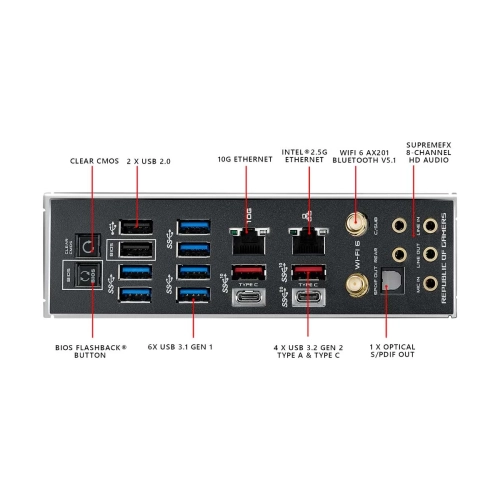

Back I/O Ports	1 x LAN (2.5G) port(s) 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 6 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack™ Button(s) 1 x ASUS Wi-Fi Module 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x W_PUMP+ connector 1 x WB_SENSOR 8 x Radiator Fan Headers 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Node Connector(s) 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 8 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x 4-pin EZ_PLUG Power connector(s) 1 x Slow Mode switch(es) 8 x ProbeIt Measurement Points 1 x Thermal sensor connector(s) 1 x BIOS Switch button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x Speaker connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 2 x RSVD Switch 1 x Start button 1 x FlexKey button 2 x USB 3.2 Gen 2 front panel connector
Accessories	User´s manual 1 x ROG logo plate sticker 3 x M.2 Screw Package 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan) 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 2 x mini DisplayPort Cable 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 3 x Thermistor cable(s) 1 x USB drive with utilities and drivers 8 x ROG weave SATA 6G cable 1 x ROG DIMM.2 with heatsink 1 x ROG Multi-Bit screwdriver 1 x THUNDERBOLTEX 3-TR Card 1 x ASUS TB header cable 1 x USB2.0 Cable ROG key chain 2 x M.2 Pad for ROG DIMM.2 1 x 2-in-1 Rubber pad
BIOS	2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Form Factor	Extended ATX Form Factor 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

Warranty

3 Years Replacement Warranty (*terms and conditions apply)

Sold out

Click to enlarge

Asus ROG MAXIMUS XII EXTREME Motherboard

Name: Asus ROG MAXIMUS XII EXTREME Motherboard
Brand: ASUS
SKU: 294
Price: 72000 BDT
Availability: OutOfStock

৳ 72,000

Expertly tuned by our ROG Engineers to bring you the ultimate performance. Made to be extreme as the name suggested, is positioned for max performance water-cooling enthusiasts. Combining hardware and software, to achieve optimized overclocking, high-speed memory support and comprehensive water and fan cooling controls, Maximus XII Extreme delivers ultimate performance combined with efficient, reliable operation.

স্টক আপডেট জানতে আমাদের কল করুন

Out of stock

Price can change anytime; Please call or message us before ordering to ensure the product price.

Compare

Add to wishlist

4 People watching this product now!

SKU: 294 Categories: Asus Motherboard, Component, Motherboard Tags: asus, maximus, monitor, xtreme

Description
Additional information

CPU	Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to http://www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z490
Memory	4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133 (O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/ 3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists).
Multi-GPU Support	Supports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots	Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel® Z490 Chipset 1 x PCIe 3.0 x4 *1
Storage	Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel® 10th Gen Processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)2 Intel® Z490 Chipset : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support3 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready
LAN	Intel® I225-V 2.5Gb Ethernet Marvell® AQtion AQC107 10Gb Ethernet ASUS LANGuard
Wireless Data Network	Intel® Wi-Fi 6 AX201 Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface
Bluetooth	Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio	ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220 – Impedance sense for front and rear headphone outputs – High quality120dBSNR stereo playback outputand113dBSNR recording input – ESS™ ES9023 DAC + RC4580 OP AMP – Supports up to 32-Bit/192kHz playback LED-illuminated audio jacks Audio Feature : – SupremeFX Shielding™ Technology – Optical S/PDIF out port(s) at back panel – Premium Japanese audio capacitors – Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. – Supports : Multi-streaming, Front Panel Jack-retasking
USB Ports	Rear USB Port ( Total 12 ) 1 x USB 3.2 Gen 2×2 port(s) 3 x USB 3.2 Gen 2 port(s)(2 + Type-A +1 + USB Type-CTM) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 10 ) 2 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
Software Features	ROG Exclusive Software – Mem Tweakit – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS® Sound Unbound – Overwolf – BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – OLED Display AI Suite 3: – 5-Way Optimization with AI Overclocking TPU EPU Digi+ Power Control Fan Xpert 4 Turbo app – EZ update AI Charger WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey
ASUS Special Features	ROG Extreme OC kit – EZ PLUG – FlexKey button – LN2 Mode – Probelt – ReTry button – Safe boot button – Start button – Slow Mode Extreme Engine Digi+ – 10K Black Metallic Capacitors – Infineon TDA21490 Power Stage – MicroFine Alloy Choke ASUS Q-Design – ASUS Q-Code – ASUS Q-Connector – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink cover – Steel backplate ASUS EZ DIY – BIOS Flashback™ button – Clear CMOS button – Procool II – Pre-mounted I/O shield – SafeSlot AURA Sync – ROG Aura sync backplate – Standard RGB header(s) – Addressable Gen 2 RGB header(s) LiveDash OLED 2″
Back I/O Ports	1 x LAN (2.5G) port(s) 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 6 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack™ Button(s) 1 x ASUS Wi-Fi Module 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x W_PUMP+ connector 1 x WB_SENSOR 8 x Radiator Fan Headers 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Node Connector(s) 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 8 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x 4-pin EZ_PLUG Power connector(s) 1 x Slow Mode switch(es) 8 x ProbeIt Measurement Points 1 x Thermal sensor connector(s) 1 x BIOS Switch button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x Speaker connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 2 x RSVD Switch 1 x Start button 1 x FlexKey button 2 x USB 3.2 Gen 2 front panel connector
Accessories	User´s manual 1 x ROG logo plate sticker 3 x M.2 Screw Package 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan) 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 2 x mini DisplayPort Cable 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 3 x Thermistor cable(s) 1 x USB drive with utilities and drivers 8 x ROG weave SATA 6G cable 1 x ROG DIMM.2 with heatsink 1 x ROG Multi-Bit screwdriver 1 x THUNDERBOLTEX 3-TR Card 1 x ASUS TB header cable 1 x USB2.0 Cable ROG key chain 2 x M.2 Pad for ROG DIMM.2 1 x 2-in-1 Rubber pad
BIOS	2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Form Factor	Extended ATX Form Factor 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

Additional information

Brands	ASUS
